Precision.. Reliability.. Economy..

DIN 2080

SMS - Face Mill Arbor

ISO - Form AD

Send enquiry

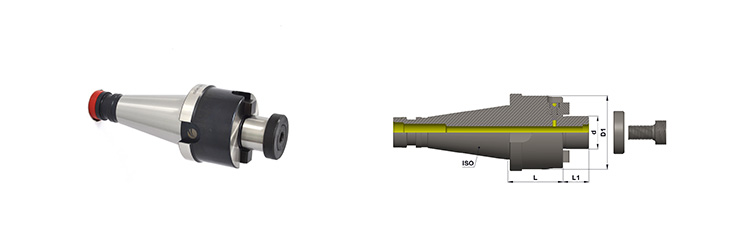

Product Name Taper Form d L L1 D1 Cutter Dia Kgs Group
ISO 40 AD SMS 22 045 40 AD 22 45 19 48 50&63 1.5 B
ISO 40 AD SMS 27 045 40 AD 27 45 21 60 80 1.6 B
ISO 40 AD SMS 32 045 40 AD 32 45 24 70 100 2.3 B
ISO 40 AD SMS 40 060 40 AD 40 60 27 80 125 2.7 B

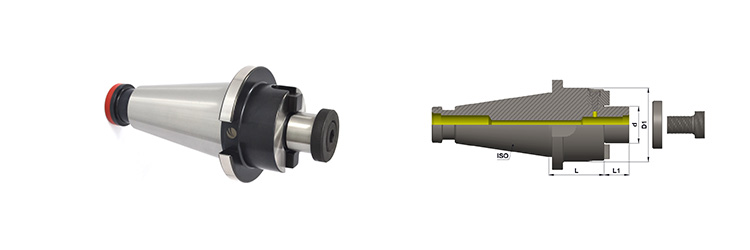

Product Name Taper Form d L L1 D1 Cutter Dia Kgs Group
ISO 50 AD SMS 22 045 50 AD 22 45 19 48 50 & 63 3.5 B
ISO 50 AD SMS 27 045 50 AD 27 45 21 60 80 4.2 B
ISO 50 AD SMS 32 045 50 AD 32 45 24 70 100 4.2 B
ISO 50 AD SMS 40 060 50 AD 40 60 27 80 125 5.3 B

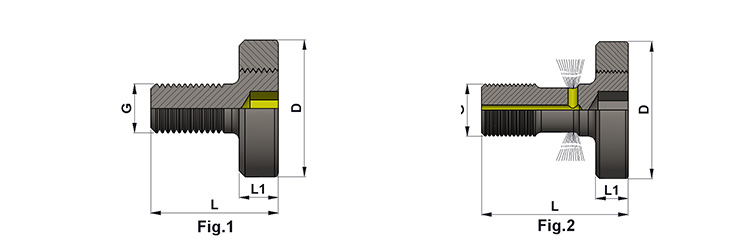

Cutter Clamping Screw

D L L1 G d. Allen Key FIG Remarks
20 23 7 M8 - 5mm 1 Normal
28 26 8 M10 - 6mm 1 Normal
35 31 9 M12 - 8mm 1 NORMAL
42 36 10 M16 - 10mm 1 NORMAL
52 41 11 M20 - 12mm 1 NORMAL
75 60 15 M30 - 17mm 1 NORMAL
75 49 13 M24 - 14mm 1 NORMAL
20 32 7 M8 2.5 5mm 2 THRU COOLANT
28 33 8 M10 3.2 6mm 2 THRU COOLANT
35 44 9 M12 3.2 8mm 2 THRU COOLANT
42 45 10 M16 3.2 10mm 2 THRU COOLANT
52 51 11 M20 3.2 12mm 2 THRU COOLANT

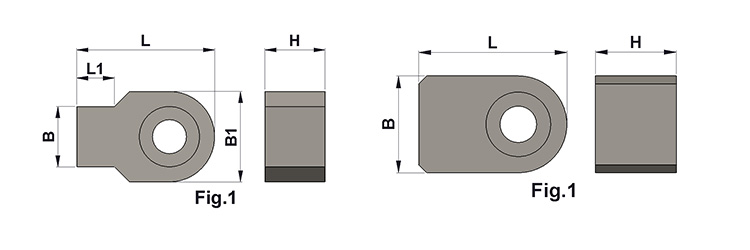

Driving key

Product name B b1 L L1 H Allen Key FIG
DRIVING KEY 08 16 8 12 17.5 5 8 M4 1
DRIVING KEY 10 22 10 12 18.3 7.5 10 M4 1
DRIVING KEY 12 27 12 - 18.3 - 10 M4 2
DRIVING KEY 14 32 14 - 24 - 13 M5 2
DRIVING KEY 16 40 16 - 24 - 16 M6 2
