Boring Bars

MOD - Master Holders

for Boring Bars

Send enquiry

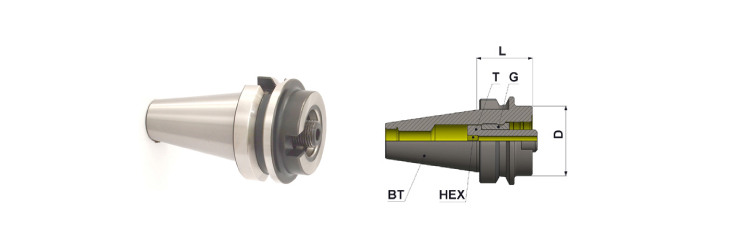

BT 30 – Form AD

Product name D L G T Hex Kgs Group
BT 30 AD MOD 50 050 50 50 M25X1.5-LH M16X1.5 10 0.7 A

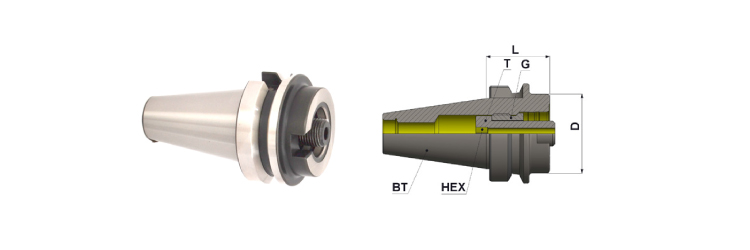

BT 40 – Form AD

Product name D L G T Hex Kgs Group
BT 40 AD MOD 50 040 50 40 M25X1.5-LH M16X1.5 10 1.1 A
BT 40 AD MOD 63 050 63 50 M30X1.5-LH M20X2 10 1.3 A
BT 40 AD MOD 80 050 80 50 M30X1.5-LH M20X2 10 1.5 A

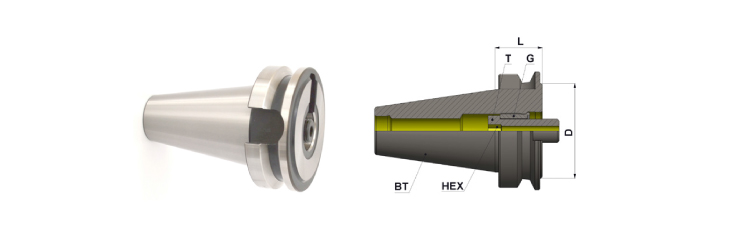

BT 50 – Form AD

Product name D L G T Hex Kgs Group
BT 50 AD MOD 50 040 50 40 M25X1.5-LH M16X1.5 10 3.5 A
BT 50 AD MOD 63 040 63 40 M30X1.5-LH M20X2 10 3.5 A
BT 50 AD MOD 80 040 80 40 M30X1.5-LH M20X2 10 3.6 A

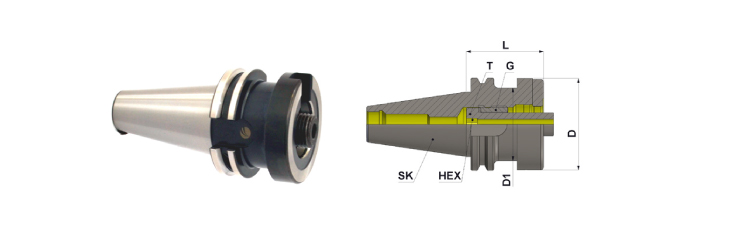

SK 40 - Form AD

Product name D L G T Kgs Hex Group
SK 40 AD MOD 50 040 50 40 M25X1.5-LH M16X1.5 1.1 10 B
SK 40 AD MOD 63 050 63 50 M30X1.5-LH M20X2 1.4 10 B

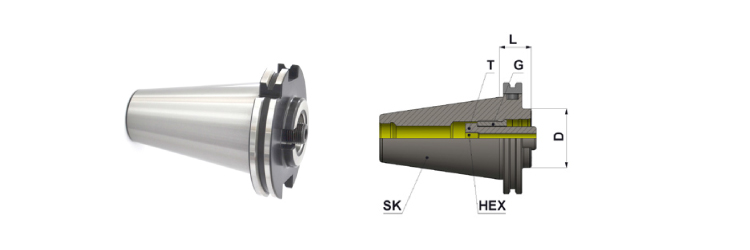

SK 50 - Form AD

Product name D L G T Kgs Hex Group
SK 50 AD MOD 50 027 50 27 M25X1.5-LH M16X1.5 2.6 10 B
SK 50 AD MOD 63 027 63 27 M30X1.5-LH M20X2 2.7 10 B
SK 50 AD MOD 80 027 80 27 M30X1.5-LH M20X2 2.8 10 B

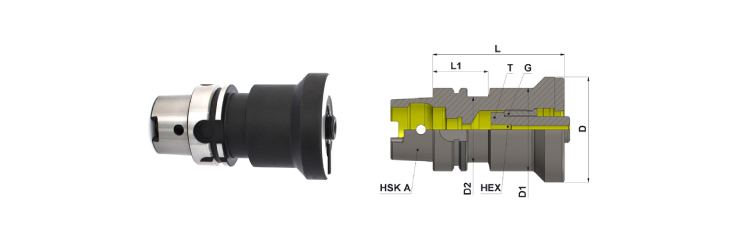

HSK A63

Product name D D1 D2 L L1 G T Hex Kgs Group
HSK A63 MOD50 090 50 63 - 90 - M25X1.5-LH M16X1.5 7 1.5 B
HSK A63 MOD63 100 63 63 50 100 42 M30X1.5-LH M20X2 7 2.1 B
HSK A63 MOD80 100 80 63 50 100 42 M30X1.5-LH M20X2 7 2.6 B

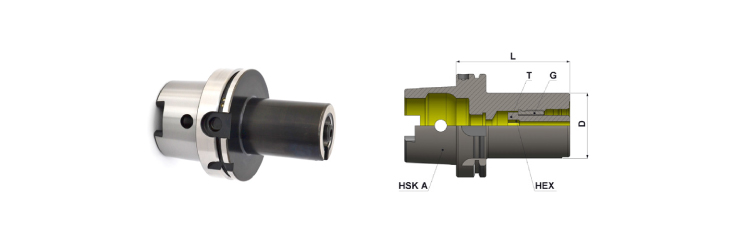

HSK A100

Product name D L G T Hex Kgs Group
HSK A100 MOD50 100 50 100 M25X1.5-LH M16X1.5 10 2.9 B
HSK A100 MOD63 110 63 110 M30X1.5-LH M20X2 10 3.7 B
HSK A100 MOD80 110 80 110 M30X1.5-LH M20X2 10 4.9 B

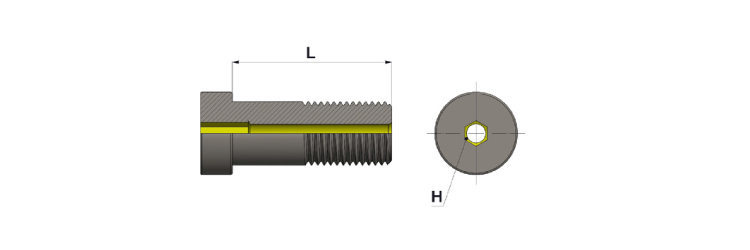

Vari lock screw

Product name Hex L
VARI LOCK STOPPER SCREW M16 X 1.5 - 7mm 7 40
VARI LOCK STOPPER SCREW M16 X 1.5 - 10mm 10 40
VARI LOCK STOPPER SCREW M20 X 2 - 7mm 7 50
VARI LOCK STOPPER SCREW M20 X 2 - 10mm 10 50

Retaining nut

Product name L
LOCKING SCREW L.H. M25 X 1.5 20
LOCKING SCREW L.H. M30 X 1.5 25
