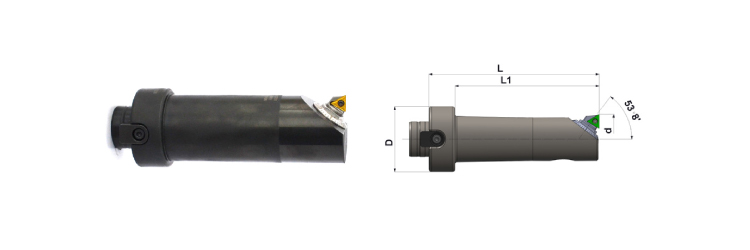

Modular50 BCA - Range (23 - 66)

Product name	D	L	L1	Boring Range - d	Micro Bore Unit (Catridge)	Kgs	Group
MOD50 MICRO BORING BAR 023 110	50	110	90	23-29	M3 B2 CCMT	0.6	B
MOD50 MICRO BORING BAR 029 130	50	130	110	29-39	M3 A2 CCMT	0.8	B
MOD50 MICRO BORING BAR 038 130	50	130	110	38-49	M5 B2 TCMT	1.1	B
MOD50 MICRO BORING BAR 046 130	50	130	110	46-66	M5 A2 TCMT	1.5	B

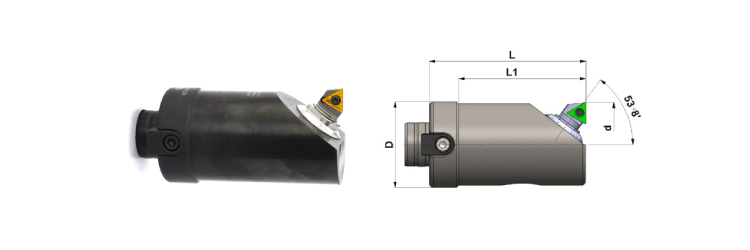

Modular63 BCA - Range (62 - 87)

Product name	D	L	L1	Boring Range - d	Micro Bore Unit (Catridge)	Kgs	Group
MOD63 MICRO BORING BAR 062 115	63	115	95	62-87	M7 A2 TCMT	2.3	B

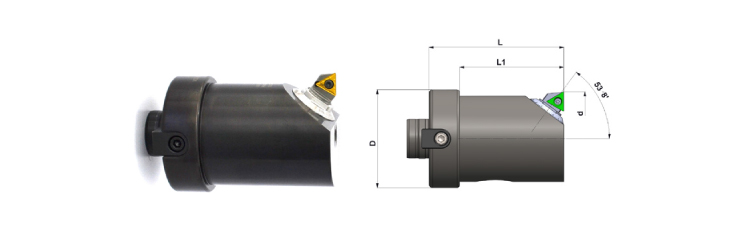

Modular80 BCA - Range (83 - 142)

Product name	D	L	L1	Boring Range - d	Micro Bore Unit (Catridge)	Kgs	Group
MOD80 MICRO BORING BAR 083 110	80	110	85	83-108	M7 A2 TCMT	3.1	B
MOD80 MICRO BORING BAR 098 115	80	115	85	98-142	M10 A2 TCMT	3.3	B



Note:

• Micro bore catridge to be order seperately
• For, Catridge please refer page No: 15

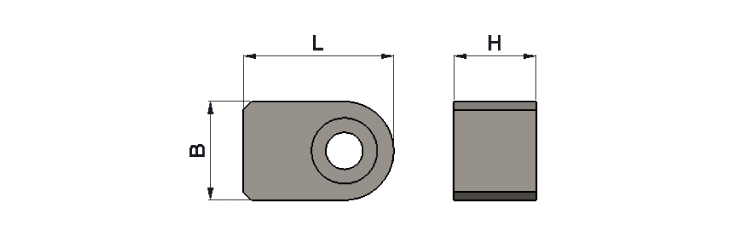

Driving Key

Product name	B	H	L	Allen Screw
DRIVING KEY 12 27	12	10	18.3	M4
DRIVING KEY 16 40	16	16	24	M6
DRIVING KEY MOD63 16 40	16	13	24	M6
