BORING BARS

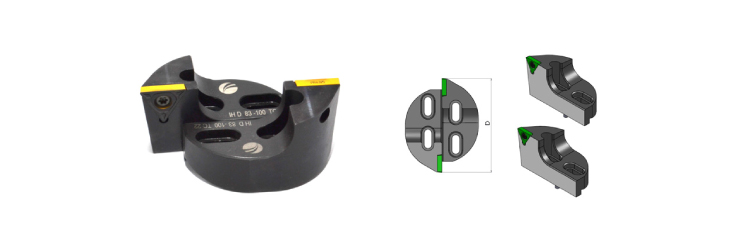

Insert Holders

Product name	Boring Range - d	Insert Type	Torque for Tightening Slide	Allen Screw for Slide Locking	Insert Screw	Torque for Tightening Insert screw
INSERT HOLDER DIA 025 - 032 CCMT 06	25 - 32	CCMT 06 02 08	4.8	M4X10	(M2.5)	0.9
INSERT HOLDER DIA 030 - 038 CCMT 06	30 - 38	CCMT 06 02 08	4.8	M4X10	(M2.5)	0.9
INSERT HOLDER DIA 037 - 047 TCMT11	37 - 47	TCMT 11 02 08	4.8	M4X20	(M2.5)	0.9
INSERT HOLDER DIA 046 - 056 TCMT16	46 - 56	TCMT 16 T3 08	9	M5X25	(M3.5)	3
INSERT HOLDER DIA 055 - 070 TCMT16	55 – 70	TCMT 16 T3 08	16	M6X30	(M3.5)	3
INSERT HOLDER DIA 069 - 085 TCMT16	69 - 85	TCMT 16 T3 08	16	M6X30	(M3.5)	3
INSERT HOLDER DIA 083 - 101 TCMT16	83 - 101	TCMT 16 T3 08	16	M6X30	(M3.5)	3
INSERT HOLDER DIA 083 - 101 TCMT22	83 - 101	TCMT 22 04 08	16	M6X30	(M5.0)	3
INSERT HOLDER DIA 099 - 126 TCMT16	99 - 126	TCMT 16 T3 08	38	M8X25	(M3.5)	3
INSERT HOLDER DIA 099 - 126 TCMT22	99 - 126	TCMT 22 04 08	38	M8X25	(M5.0)	3
INSERT HOLDER DIA 123 - 150 TCMT16	123 - 150	TCMT 16 T3 08	38	M8X25	(M3.5)	3
INSERT HOLDER DIA 123 - 150 TCMT22	123 - 150	TCMT 22 04 08	38	M8X25	(M5.0)	3
INSERT HOLDER DIA 148 - 190 TCMT16	148 - 190	TCMT 16 T3 08	75	M10X30	(M3.5)	3
INSERT HOLDER DIA 148 - 190 TCMT22	148 - 190	TCMT 22 04 08	75	M10X30	(M5.0)	3
INSERT HOLDER DIA 188 - 230 TCMT16	188 - 230	TCMT 16 T3 08	75	M10X30	(M3.5)	3
INSERT HOLDER DIA 188 - 230 TCMT22	188 - 230	TCMT 22 04 08	75	M10X30	(M5.0)	3
INSERT HOLDER DIA 228 - 270 TCMT 16	228 - 270	TCMT 16 T3 08	75	M10X30	(M3.5)	3
INSERT HOLDER DIA 228 - 270 TCMT 22	228 - 270	TCMT 22 04 08	75	M10X30	(M5.0)	3
