Boring Bars

EXT Intermediate Adaptors

BORING BARS

Send enquiry

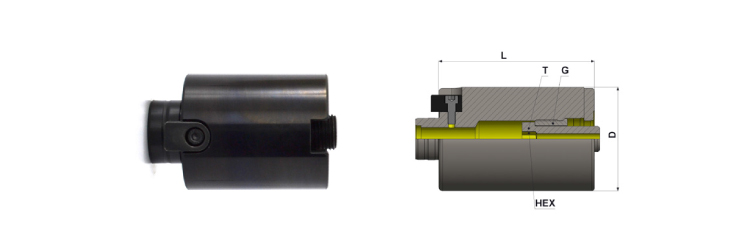

Extensions

Product name D L G T Hex Kgs Group
MOD50 BORING BAR EXTENSION 050 060 50 60 M25X1.5-LH M16X1.5 10 0.8 A
MOD50 BORING BAR EXTENSION 050 080 50 80 M25X1.5-LH M16X1.5 10 1.0 A
MOD50 BORING BAR EXTENSION 050 100 50 100 M25X1.5-LH M16X1.5 10 1.3 A
MOD63 BORING BAR EXTENSION 063 080 63 80 M30X1.5-LH M20X2 10 1.6 A
MOD63 BORING BAR EXTENSION 063 100 63 100 M30X1.5-LH M20X2 10 2.1 A
MOD63 BORING BAR EXTENSION 063 120 63 120 M30X1.5-LH M20X2 10 2.7 A
MOD80 BORING BAR EXTENSION 080 080 80 80 M30X1.5-LH M20X2 10 2.8 A
MOD80 BORING BAR EXTENSION 080 100 80 100 M30X1.5-LH M20X2 10 3.4 A
MOD80 BORING BAR EXTENSION 080 120 80 120 M30X1.5-LH M20X2 10 4.2 A
MOD80 BORING BAR EXTENSION 080 160 80 160 M30X1.5-LH M20X2 10 6.3 A

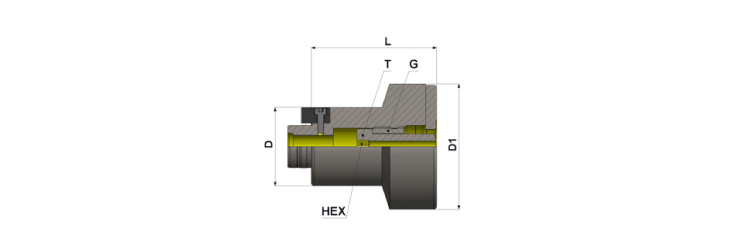

Expansions

Product name D D1 L G T Hex Kgs Group
MOD50 BORING BAR EXPANSION 063 080 50 63 80 M30X1.5-LH M20X2 10 1.3 A
MOD63 BORING BAR EXPANSION 080 080 63 80 80 M30X1.5-LH M20X2 10 2 A

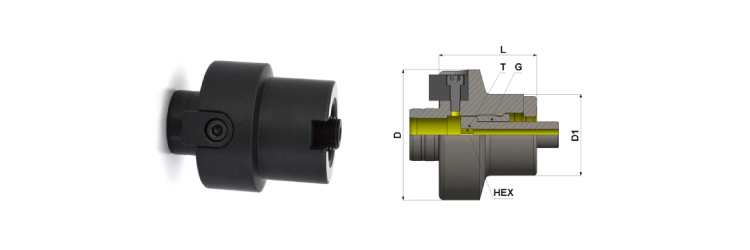

Reductions

Product name D D1 L G T Hex Kgs Group
MOD63 BORING BAR REDUCTION 050 060 63 50 60 M25X1.5-LH M16X1.5 10 0.9 A
MOD80 BORING BAR REDUCTION 050 060 80 50 60 M25X1.5-LH M16X1.5 10 1.6 A
MOD80 BORING BAR REDUCTION 063 080 80 63 80 M30X1.5-LH M20X2 10 2 A

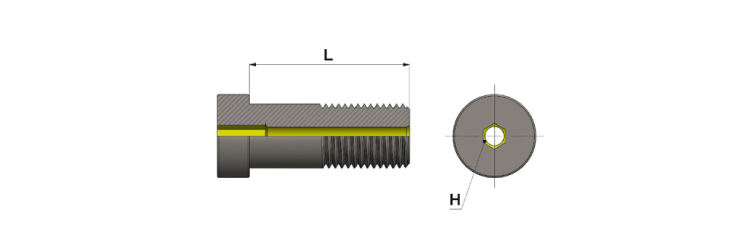

Vari lock screw

Product name Hex L
VARI LOCK STOPPER SCREW M16 X 1.5 - 7mm 7 40
VARI LOCK STOPPER SCREW M16 X 1.5 - 10mm 10 40
VARI LOCK STOPPER SCREW M20 X 2 - 7mm 7 50
VARI LOCK STOPPER SCREW M20 X 2 - 10mm 10 50

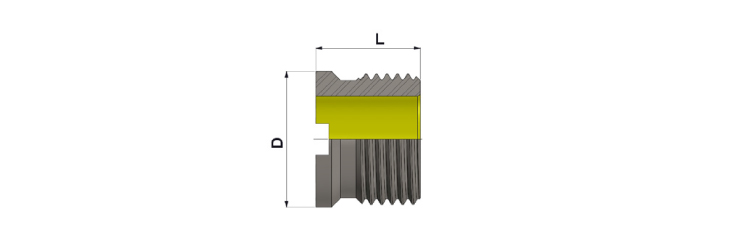

Retaining nut

Product name L
LOCKING SCREW L.H. M25 X 1.5 20
LOCKING SCREW L.H. M30 X 1.5 25

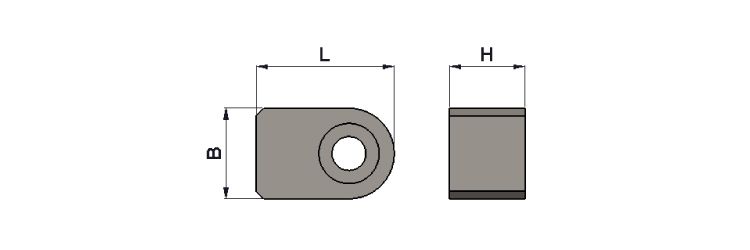

Driving Key

Product name B H L
DRIVING KEY 12 27 12 10 18.3
DRIVING KEY 16 40 16 16 24
DRIVING KEY MOD63 16 40 16 13 24
<

If you have any Queries Please Contact Us
