Boring Bars

FBB Modular Finish Boring Bars

Rough Boring Bars

Send enquiry

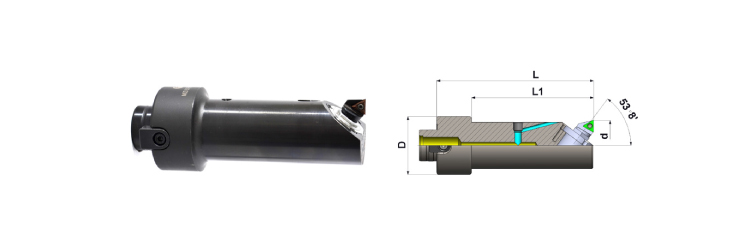

Modular50 FBB - Range (25 - 70)

Product name D L L1 (D) RANGE Catrdige as Per Sandvik Insert Type Kgs Group
MOD50 FINISH BORING BAR 25 110 50 110 80 25 - 28 L 148 C 31 06 T1 / L148 C 31 06 02 TCMT 06 T1/ CCMT 06 02 0.8 B
MOD50 FINISH BORING BAR 28 110 50 110 80 28 - 31 L 148 C 31 06 T1 / L148 C 31 06 02 TCMT 06 T1/ CCMT 06 02 0.8 B
MOD50 FINISH BORING BAR 31 120 50 120 90 31 - 34 L 148 C 31 06 T1 / L148 C 31 06 02 TCMT 06 T1/ CCMT 06 02 0.8 B
MOD50 FINISH BORING BAR 34 120 50 120 90 34 - 39 L 148 C 32 09 02 TCMT 09 02 04 1.0 B
MOD50 FINISH BORING BAR 39 120 50 120 90 39 - 44 L 148 C 32 09 02 TCMT 09 02 04 1.1 B
MOD50 FINISH BORING BAR 44 120 50 120 90 44 - 52 L 148 C 33 11 02 TCMT 11 02 04 1.3 B
MOD50 FINISH BORING BAR 52 100 50 100 - 52 - 60 L 148 C 33 11 02 TCMT 11 02 04 1.3 B
MOD50 FINISH BORING BAR 60 100 50 100 - 60 - 68 L 148 C 33 11 02 TCMT 11 02 04 1.9 B

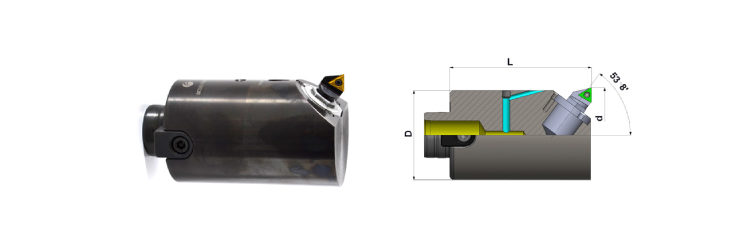

Modular63 FBB - Range (69 - 101)

Product name D L Boring Range - d Catrdige as Per Sandvik Insert Type Kgs Group
MOD63 FINISH BORING BAR 68 100 63 100 68 - 76 L 148 C 33 11 02 TCMT 11 02 04 2.4 B
MOD63 FINISH BORING BAR 76 100 63 100 76 - 84 L 148 C 33 11 02 TCMT 11 02 04 2.7 B

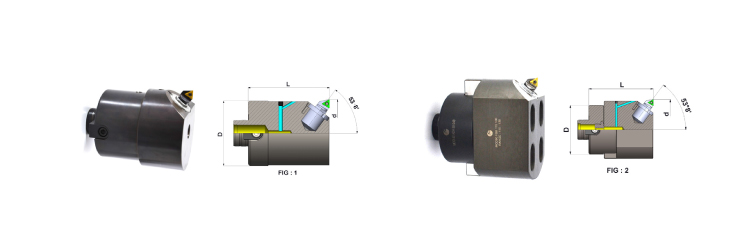

Modular80 FBB - Range (99 - 270)

Product name D L L1 Boring Range - d Catrdige as Per Sandvik Insert Type FIG Kgs Group
MOD80 FINISH BORING BAR 84 100 80 100 - 84 - 92 L 148 C 33 11 02 TCMT 11 02 04 1 3.8 B
MOD80 FINISH BORING BAR 92 100 80 100 - 92 - 100 L 148 C 33 11 02 TCMT 11 02 04 1 4.0 B
MOD80 FINISH BORING BAR 100 100 80 100 - 100-115 L 148 C 33 11 02 TCMT 11 02 04 2 2.6 B
MOD80 FINISH BORING BAR 115 100 80 100 - 115 - 130 L 148 C 33 11 02 TCMT 11 02 04 2 2.9 B
MOD80 FINISH BORING BAR 130 100 80 100 - 130 - 145 L 148 C 33 11 02 TCMT 11 02 04 2 3.2 B
MOD80 FINISH BORING BAR 145 100 80 100 - 145 - 160 L 148 C 33 11 02 TCMT 11 02 04 2 3.5 B

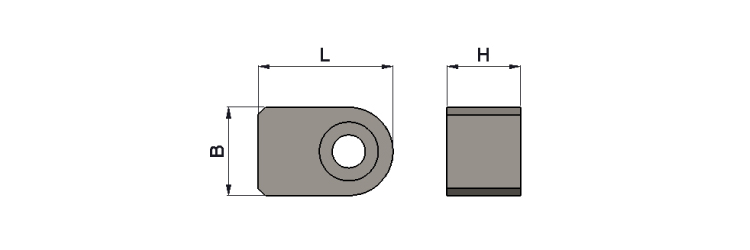

Driving Key

Product name B H L Allen Screw
DRIVING KEY 12 27 12 10 18.3 M4
DRIVING KEY 16 40 16 16 24 M6
DRIVING KEY MOD63 16 40 16 13 24 M6

If you have any Queries Please Contact Us
