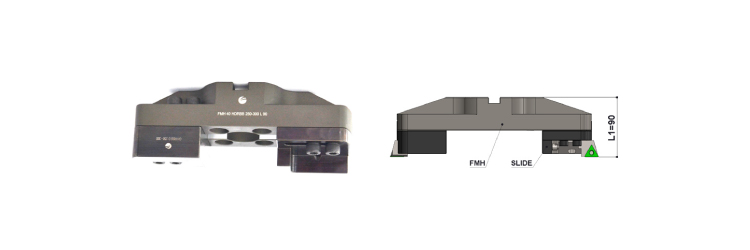

Assembly

Note:

• Slide to be odered seperately
• Slide “2Nos” required per one boring bar
• Catridge to be ordered seperately

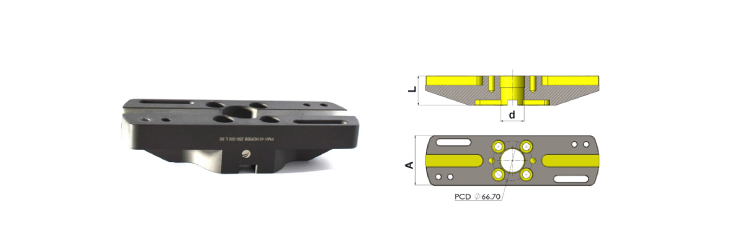

Rough Boring Bars

Product name	d.	A	L	(D) RANGE	PCD	Kgs	Group
FLANGE TYPE HD RBB 250 – 300	40	85	50	250 – 300	66.7	4.2	B
FLANGE TYPE HD RBB 300 – 350	40	85	50	300 – 350	66.7	4.5	B
FLANGE TYPE HD RBB 350 - 400	40	85	50	350 – 400	66.7	4.9	B

Note:
Please use Dia 40 Face Mill Arbors - Flange Type For Mounting

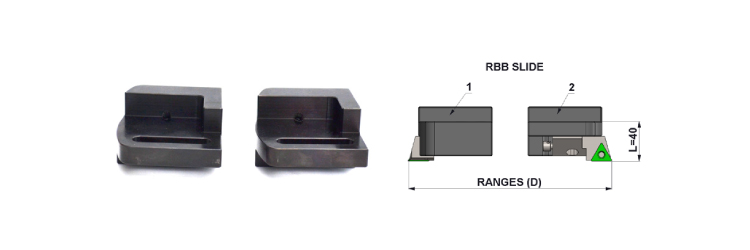

Slide – Rough Boring Bars

Product name	L	(D) RANGE	Insert Type	Catridge	Entering Angle
3320 ROUGH BORING BAR 250 – 300	40	250 – 300	TNMG 22 04 08 / SNMG 15 06 12	PTGNL20CA22 / PSRNL20CA15	90º / 75º
3320 ROUGH BORING BAR 300 – 350	40	300 – 350	TNMG 22 04 08 / SNMG 15 06 12	PTGNL20CA22 / PSRNL20CA15	90º / 75º
3320 ROUGH BORING BAR 350 – 400	40	350 – 400	TNMG 22 04 08 / SNMG 15 06 12	PTGNL20CA22 / PSRNL20CA15	90º / 75º
