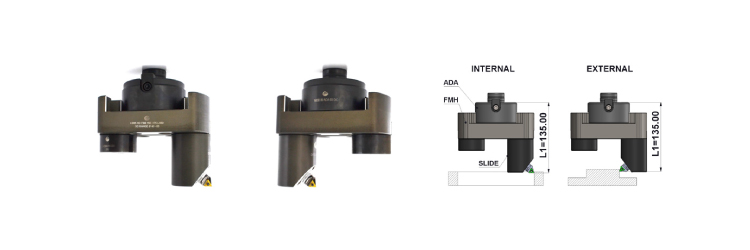

Type - A

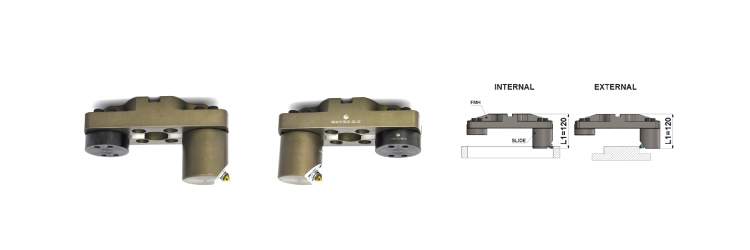

Type - B

Note:

• Slide to be odered seperately
• Catridge to be ordered seperately

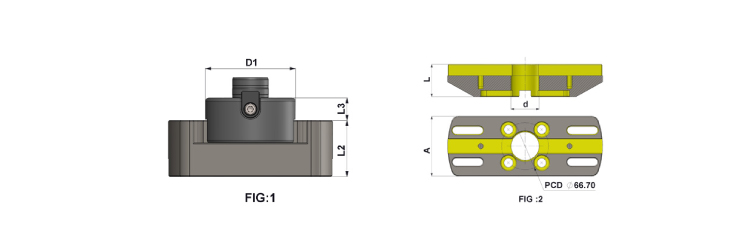

Finish Boring Bars

Product name	d.	D1	A	L	L2	L3	PCD	Boring Range	OD-Turning Range	FIG	InAssembly	Kgs	Group
MOD80 HDFBB 150 – 175	-	80	85	-	50	20	-	150-175	40-65	1	Type A	3.5	B
MOD80 HDFBB 175 – 200	-	80	85	-	50	20	-	175-200	65-90	1	Type A	4.5	B
MOD80 HDFBB 200 – 225	-	80	85	-	50	20	-	200-225	90-115	1	Type A	4.6	B
FLANGE TYPE HD FBB 225 – 250	40	-	85	50	-	-	66.7	225-250	75-100	2	Type B	5.4	B
FLANGE TYPE HD FBB 250 – 275	40	-	85	50	-	-	66.7	250-275	100-125	2	Type B	5.5	B
FLANGE TYPE HD FBB 275 – 300	40	-	85	50	-	-	66.7	275-300	125-150	2	Type B	5.6	B
FLANGE TYPE HD FBB 300 – 325	40	-	85	50	-	-	66.7	300-325	150-175	2	Type B	5.9	B
FLANGE TYPE HD FBB 325 – 350	40	-	85	50	-	-	66.7	325-350	175-200	2	Type B	6	B

Note:

• Please use Dia 40 Face Mill Arbors - Flange Type For Mounting

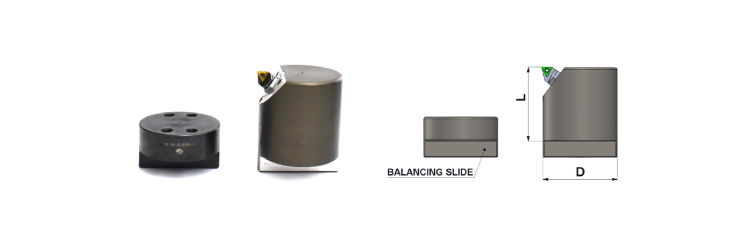

Slide – Finish Boring Bars

Product name	D	L	Boring Range	OD-Turning Range	Catridge as per Sandvik
CH FINISH BORING BAR 150 225	50	65	150 – 225	40 – 115	L 148 C 33 11 02
CH FINISH BORING BAR 225 550	70	70	225 – 550	75 – 200	L 148 C 33 11 02
