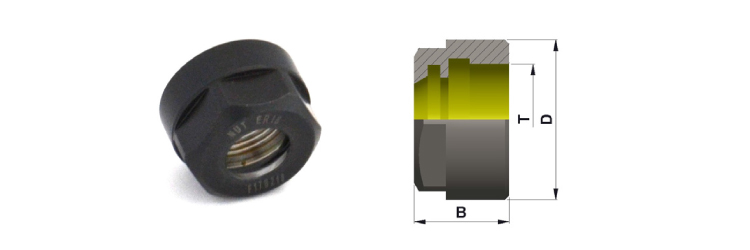

Hexagonal Nut
| Product Name | D | B | T | Kgs | Group |
|---|---|---|---|---|---|
| NUT 11 ERH | 19 | 11.3 | M14X0.75 | 0.01 | B |
| NUT 16 ERH | 28 | 17.5 | M22X1.50 | 0.03 | B |
| Product Name | D | B | T | Kgs | Group |
|---|---|---|---|---|---|
| NUT 11 ERH | 19 | 11.3 | M14X0.75 | 0.01 | B |
| NUT 16 ERH | 28 | 17.5 | M22X1.50 | 0.03 | B |
| Product Name | D | B | T | Kgs | Group |
|---|---|---|---|---|---|
| NUT 11 ERM | 16 | 11.3 | M13X0.75 | 0.01 | B |
| NUT 16 ERM | 22 | 17.5 | M19X1.00 | 0.02 | B |
| NUT 20 ERM | 28 | 19.0 | M24X1.00 | 0.03 | B |
| NUT 25 ERM | 35 | 20.0 | M30X1.00 | 0.05 | B |
| Product Name | D | B | T | Kgs | Group |
|---|---|---|---|---|---|
| NUT 20 ERS | 35 | 19.0 | M25X1.50 | 0.07 | B |
| NUT 25 ERS | 42 | 20.0 | M32X1.50 | 0.09 | B |
| NUT 32 ERS | 50 | 22.5 | M40X1.50 | 0.14 | B |
| NUT 40 ERS | 63 | 25.5 | M50X1.50 | 0.26 | B |
| NUT 50 ERS | 78 | 35.0 | M64X2.00 | 0.49 | B |
