Precision.. Reliability.. Economy..

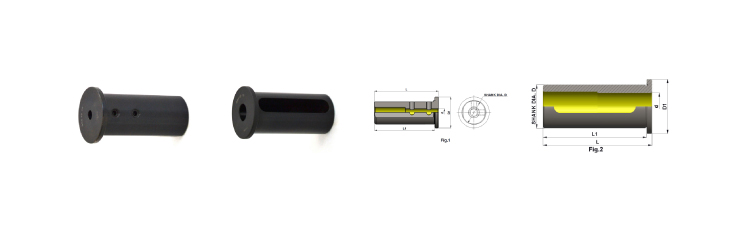

Boring Bar Sleeve

Product Name	D1	L	L1	d.	D	FIG	Kgs	Group
Boring bar sleeve 25 D 08	35	70	65	8	25	1	0.2	A
Boring Bar Sleeve 25 D10	35	70	65	10	25	1	0.2	A
Boring Bar Sleeve 25 D12	35	70	65	12	25	1	0.2	A
Boring Bar Sleeve 25 D16	35	70	65	16	25	2	0.1	A
Boring Bar Sleeve 25 D20	35	70	65	20	25	2	0.1	A
Boring Bar Sleeve 32 D08	42	87	82	8	32	1	0.4	A
Boring Bar Sleeve 32 D10	42	87	82	10	32	1	0.5	A
Boring Bar Sleeve 32 D12	42	87	82	12	32	1	0.5	A
Boring Bar Sleeve 32 D16	42	87	82	16	32	2	0.4	A
Boring Bar Sleeve 32 D20	42	87	82	20	32	2	0.3	A
Boring Bar Sleeve 32 D25	42	87	82	25	32	2	0.2	A
Boring Bar Sleeve 40 D08	50	90	85	8	40	1	0.8	A
Boring Bar Sleeve 40 D10	50	90	85	10	40	1	0.8	A
Boring Bar Sleeve 40 D12	50	90	85	12	40	1	0.8	A
Boring Bar Sleeve 40 D16	50	90	85	16	40	2	0.6	A
Boring Bar Sleeve 40 D20	50	90	85	20	40	2	0.6	A
Boring Bar Sleeve 40 D25	50	90	85	25	40	2	0.4	A
Boring Bar Sleeve 40 D32	50	90	85	32	40	2	0.3	A
Boring Bar Sleeve 50 D08	60	95	90	8	50	1	1.4	A
Boring Bar Sleeve 50 D10	60	95	90	10	50	1	1.4	A
Boring Bar Sleeve 50 D12	60	95	90	12	50	1	1.3	A
Boring Bar Sleeve 50 D16	60	95	90	16	50	2	1.2	A
Boring Bar Sleeve 50 D20	60	95	90	20	50	2	1.
1	A	Boring Bar Sleeve 50 D25	60	95	90	25	50	2	1	A
Boring Bar Sleeve 50 D32	60	95	90	32	50	2	0.8	A
Boring Bar Sleeve 50 D40	60	95	90	40	50	2	0.5	A

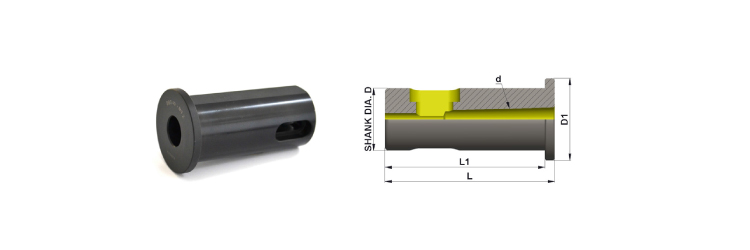

Boring Bar Sleeve MT

Product Name	d.	D	D1	L1	L	Kgs	Group
Boring Bar Sleeve 25 MT1	MT1	25	35	65	76	0.20	A
Boring Bar Sleeve 32 MT1	MT1	32	42	82	87	0.50	A
Boring Bar Sleeve 32 MT2	MT2	32	42	82	89	0.40	A
Boring Bar Sleeve 32 MT3	MT3	32	42	82	110	0.40	A
Boring Bar Sleeve 40 MT1	MT1	40	50	85	90	0.80	A
Boring Bar Sleeve 40 MT2	MT2	40	50	85	90	0.70	A
Boring Bar Sleeve 40 MT3	MT3	40	50	85	110	0.80	A
Boring Bar Sleeve 50 MT1	MT1	50	60	90	95	1.30	A
Boring Bar Sleeve 50 MT2	MT2	50	60	90	95	1.30	A
Boring Bar Sleeve 50 MT3	MT3	50	60	90	110	1.40	A
Boring Bar Sleeve 25 MT2	MT2	25	35	65	89	0.20	A
