HSK - DIN 69893

Face Mill Arbor


Send enquiry

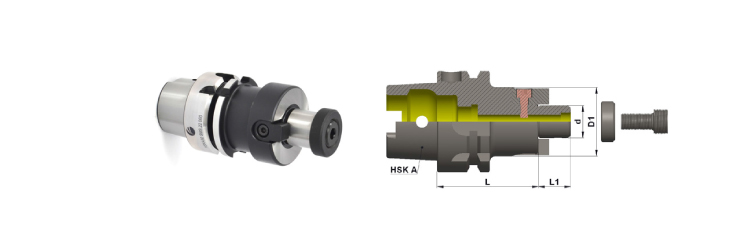

HSK A50

Product name Taper d. L L1 D1 Cutter Dia Kgs Group
HSK A50 SMS 16 050 A50 16 50 17 34 40 0.6 B
HSK A50 SMS 22 060 A50 22 60 19 48 50 & 63 0.9 B
HSK A50 SMS 27 060 A50 27 60 21 60 80 1 B

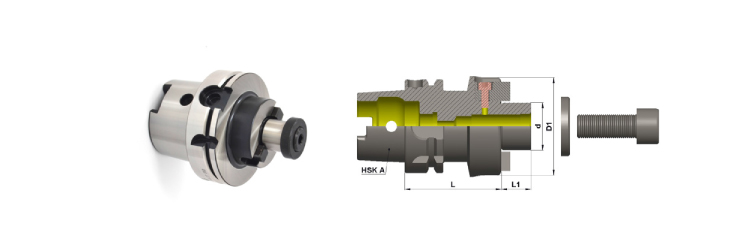

HSK A63

Product name Taper d. L L1 D1 Cutter Dia Kgs Group
HSK A63 SMS 16 050 A63 16 50 17 34 40 0.9 B
HSK A63 SMS 22 050 A63 22 50 19 48 50 & 63 1.2 B
HSK A63 SMS 27 060 A63 27 60 21 60 80 1.4 B
HSK A63 SMS 32 065 A63 32 65 24 70 100 1.6 B
HSK A63 SMS 40 065 A63 40 65 27 80 125 2 B

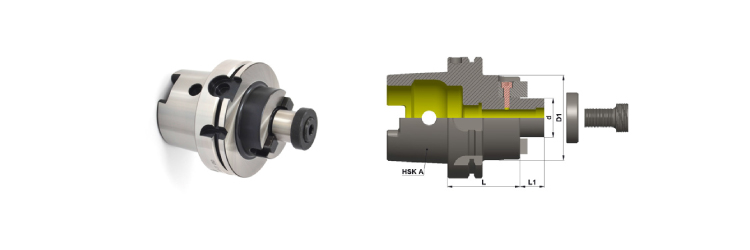

HSK A100

Product name Taper d. L L1 D1 Cutter Dia Kgs Group
HSK A100 SMS 16 050 A100 16 50 17 34 40 2.2 B
HSK A100 SMS 22 050 A100 22 50 19 48 50 & 63 2.4 B
HSK A100 SMS 27 050 A100 27 50 21 60 80 2.5 B
HSK A100 SMS 32 060 A100 32 60 24 70 100 3 B
HSK A100 SMS 40 060 A100 40 60 27 80 125 3.4 B

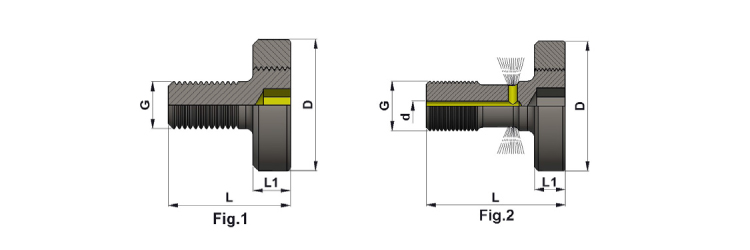

Cutter Clamping Screw

D L L1 G d. Allen Key FIG Remarks
20 23 7 M8 - 5mm 1 NORMAL
28 26 8 M10 - 6mm 1 NORMAL
35 31 9 M12 - 8mm 1 NORMAL
42 36 10 M16 - 10mm 1 NORMAL
52 41 11 M20 - 12mm 1 NORMAL
75 60 15 M30 - 17mm 1 NORMAL
75 49 13 M24 - 14mm 1 NORMAL
20 32 7 M8 2.5 5mm 2 THRU COOLANT
28 33 8 M10 3.2 6mm 2 THRU COOLANT
35 44 9 M12 3.2 8mm 2 THRU COOLANT
42 45 10 M16 3.2 10mm 2 THRU COOLANT
52 51 11 M20 3.2 12mm 2 THRU COOLANT

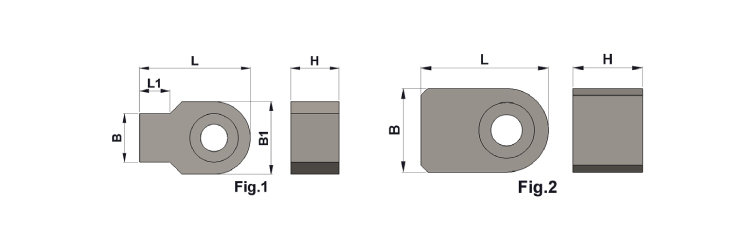

Driving Key

Product name B b1 L L1 H Allen Screw FIG
DRIVING KEY 08 16 8 12 17.5 5 8 M4 1
DRIVING KEY 10 22 10 12 18.3 7.5 10 M4 1
DRIVING KEY 12 27 12 - 18.3 - 10 M4 2
DRIVING KEY 14 32 14 - 24 - 13 M5 2
DRIVING KEY 16 40 16 - 24 - 16 M6 2

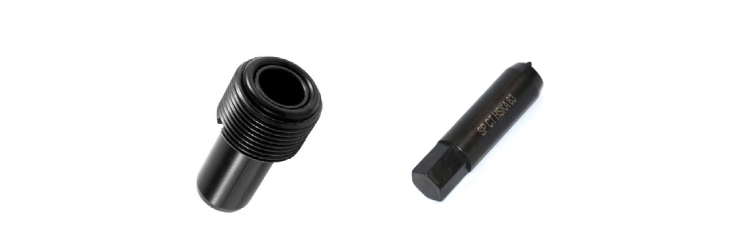

Accessories

Pre balanced G6.3@20000 RPM
Fine balancing G2.5@25000 RPM on request
