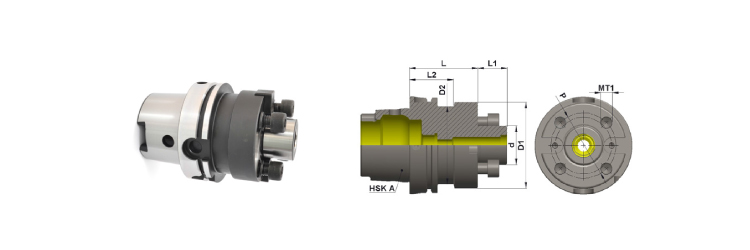

HSK A100

Product name	Taper	d.	L	D1	D2	L1	L2	P	T1	Kgs	Group
HSK A 100 FMH 40 070	A100	40	70	88	80	30	45	66.7	M12	3.9	B
HSK A 100 FMH 60 070	A100	60	70	128	80	40	45	101.6	M16	6.2	B

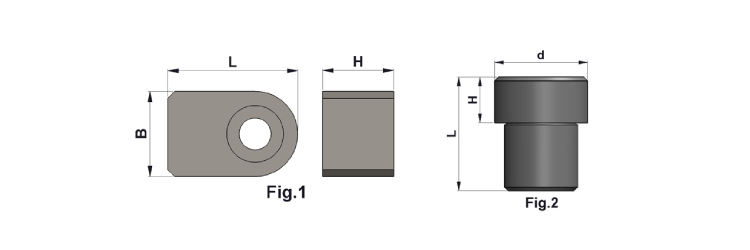

Driving Key

B	d.	H	L	Allen Screw	FIG
16	-	16	24	M6	1
-	25.4	12.5	27.5	M6	2
