JIS 6339

ER Collect Chuck

BT - Form AD & AD/B - G6.3

Send enquiry

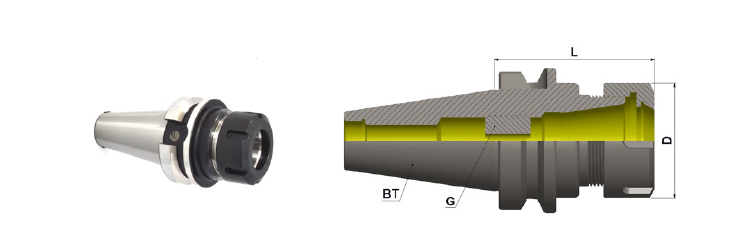

BT 30 – Standard GPL

Product Name Taper Form Size L Champing Range G D Nut Kgs Group
BT 30 AD ER 16 070 30 AD ER 16 70 1-10 SCW7/16 28 F15500-16ERH 0.7 A
F1B301A-ERS20070 BT 30 AD ER 20 070 30 AD ER 20 70 1-13 M14X1.5 35 F15500-20ERS 0.7 A
BT 30 AD ER 25 070 30 AD ER 25 70 1-16 M14X1.5 42 F15500-25ERS 0.8 A
BT 30 AD ER 32 070 30 AD ER 32 70 2-20 M14X1.5 50 F15500-32ERS 0.8 A

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
