Combi Shell Mill Holder

BT - Form AD - G6.3

Send enquiry

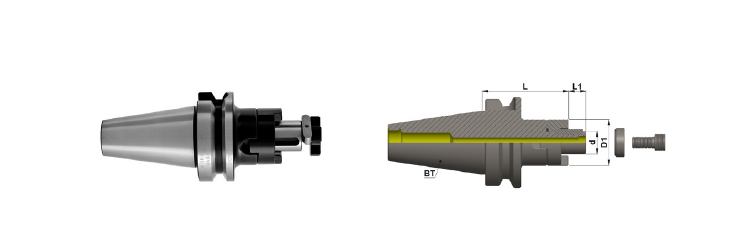

BT 40 - Standard GPL

Product Name Taper Form d. L L1 D1 Kgs Group
BT40 AD CMH 16 055 40 AD 16 55 17 32 1.1 A
BT40 AD CMH 22 055 40 AD 22 55 19 40 1.4 A/td>
BT40 AD CMH 27 055 40 AD 27 55 21 48 1.6 A
BT40 AD CMH 32 060 40 AD 32 60 24 58 2.2 A
BT40 AD CMH 40 060 40 AD 40 60 27 70 2.7 A

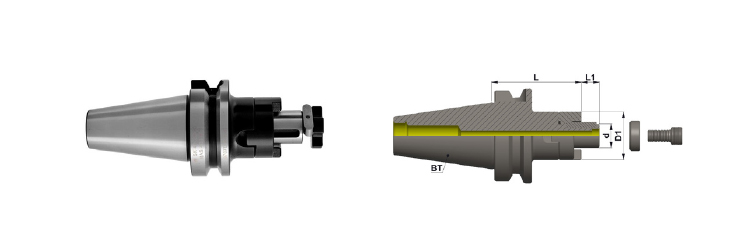

BT 50 - Standard GPL

Product Name Taper Form d. L L1 D1 Kgs Group
BT50 AD CMH 22 055 50 AD 22 55 17 40 3.4 A
BT50 AD CMH 27 055 50 AD 27 55 19 48 3.6 A
BT50 AD CMH 32 060 50 AD 32 60 21 58 4 A
BT50 AD CMH 40 060 50 AD 40 60 24 70 5 A

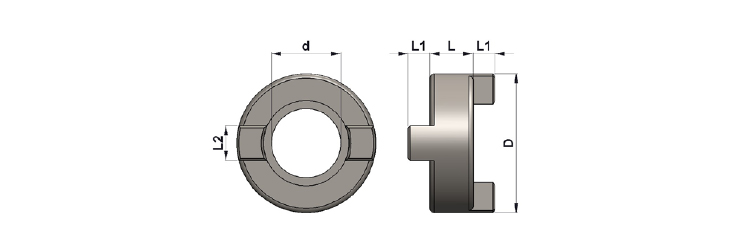

Drive Ring

d. D L L1 L2
16 32 10 5 8
22 40 12 5.6 10
27 48 12 6.3 12
32 58 14 7 14
40 70 14 8 16

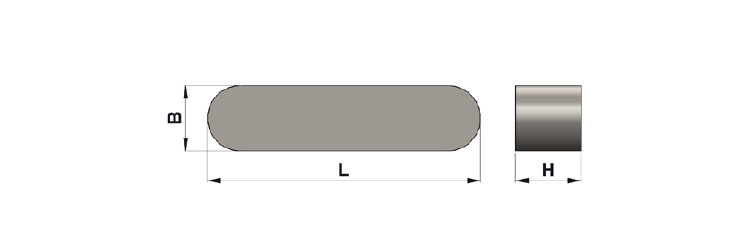

Parallel Key

Product name d. B H L
PARALLEL KEY 4x20 16 4 4 20
PARALLEL KEY 6x25 22 6 6 25
PARALLEL KEY 7x25 27 7 7 25
PARALLEL KEY 8x28 32 8 7 28
PARALLEL KEY 10x32 40 10 8 32

Cutter Clamping Screw

D L L1 G d. Allen Key FIG Remarks
20 23 7 M8 - 5mm 1 NORMAL
28 26 8 M10 - 6mm 1 NORMAL
35 31 9 M12 - 8mm 1 NORMAL
42 36 10 M16 - 10mm 1 NORMAL
52 41 11 M20 - 12mm 1 NORMAL
75 60 15 M30 - 17mm 1 NORMAL
75 49 13 M24 - 14mm 1 NORMAL
20 32 7 M8 2.5 5mm 2 THRU COOLANT
28 33 8 M10 3.2 6mm 2 THRU COOLANT
35 44 9 M12 3.2 8mm 2 THRU COOLANT
42 45 10 M16 3.2 10mm 2 THRU COOLANT
52 51 11 M20 3.2 12mm 2 THRU COOLANT

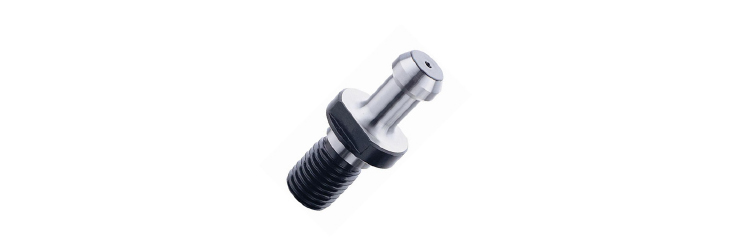

Accessories

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
