JIS 6339

SMS Face Mill Arbor

BT - Form AD - G6.3

Send enquiry

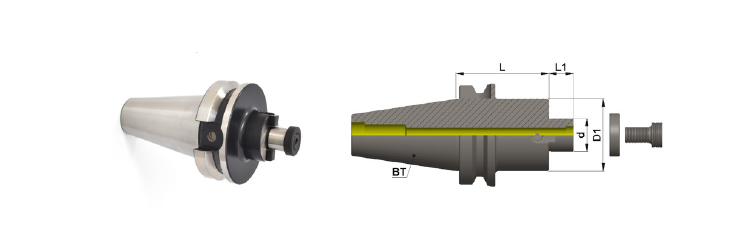

BT 30 - Standard GPL

Product Name Taper Form d. L L1 D1 Cutter Dia Kgs Group
BT30 AD SMS 16 050 30 AD 16 50 17 34 40 0.6 A
BT30 AD SMS 22 050 30 AD 22 50 19 48 50 & 63 0.8 A
BT30 AD SMS 27 050 30 AD 27 50 21 60 80 1 A

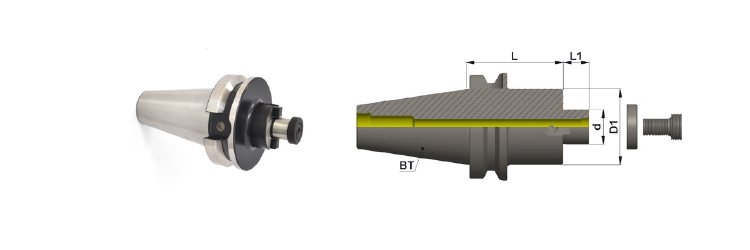

BT 40 - Standard GPL

Product Name Taper Form d. L L1 D1 Cutter Dia Kgs Group
BT40 AD SMS 16 060 40 AD 16 60 17 34 40 1.2 A
BT40 AD SMS 22 060 40 AD 22 60 19 48 50 & 63 1.5 A
BT40 AD SMS 27 045 40 AD 27 45 21 60 80 1.4 A
BT40 AD SMS 32 060 40 AD 32 60 24 70 100 2 A
BT40 AD SMS 40 060 40 AD 40 60 27 80 125 2.5 A

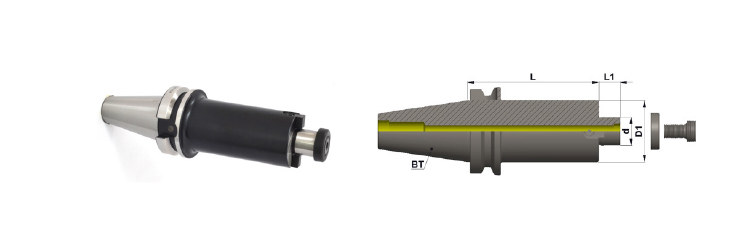

BT 40 - Extended Length

Product Name Taper Form d. L L1 D1 Cutter Dia Kgs Group
BT40 AD SMS 16 120 40 AD 16 120 17 34 40 1.7 A
BT40 AD SMS 22 120 40 AD 22 120 19 48 50 & 63 2.3 A
BT40 AD SMS 27 120 40 AD 27 120 21 60 80 3 A

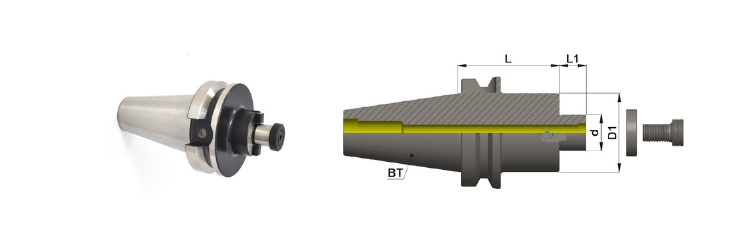

BT 50 - Standard GPL

Product Name Taper Form d. L L1 D1 Cutter Dia Kgs Group
BT50 AD SMS 22 060 50 AD 22 60 19 48 50 & 63 4.2 A
BT50 AD SMS 27 060 50 AD 27 60 21 60 80 4.2 A
BT50 AD SMS 32 060 50 AD 32 60 24 70 100 4.4 A
BT50 AD SMS 40 060 50 AD 40 60 27 80 125 4.8 A

BT 50 - Extended Length

Product Name Taper Form d. L L1 D1 Cutter Dia Kgs Group
BT50 AD SMS 22 120 50 AD 22 120 19 48 50 & 63 4.9 A
BT50 AD SMS 27105 50 AD 27 105 21 60 80 5.2 A
BT50 AD SMS 32 100 50 AD 32 100 24 70 100 6.0 A
BT50 AD SMS 40 105 50 AD 40 105 27 80 125 6.6 A

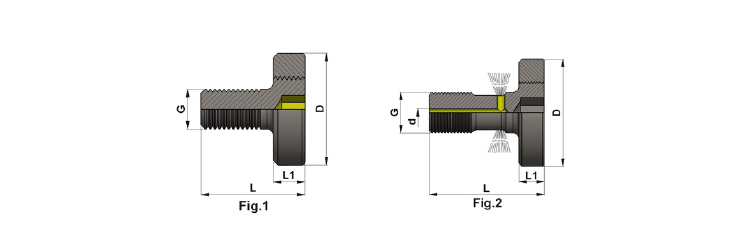

Cutter Clamping Screw

D L L1 G d. Allen Key FIG Remarks
20 23 7 M8 - 5mm 1 NORMAL
28 26 8 M10 - 6mm 1 NORMAL
35 31 9 M12 - 8mm 1 NORMAL
42 36 10 M16 - 10mm 1 NORMAL
52 41 11 M20 - 12mm 1 NORMAL
75 60 15 M30 - 17mm 1 NORMAL
75 49 13 M24 - 14mm 1 NORMAL
20 32 7 M8 2.5 5mm 2 THRU COOLANT
28 33 8 M10 3.2 6mm 2 THRU COOLANT
35 44 9 M12 3.2 8mm 2 THRU COOLANT
42 45 10 M16 3.2 10mm 2 THRU COOLANT
52 51 11 M20 3.2 12mm 2 THRU COOLANT

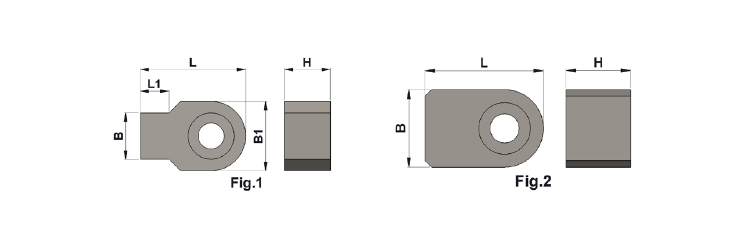

Driving Key

Product name B b1 L L1 H Allen Screw FIG
DRIVING KEY 08 16 8 12 17.5 5 8 M4 1
DRIVING KEY 10 22 10 12 18.3 7.5 10 M4 1
DRIVING KEY 12 27 12 - 18.3 - 10 M4 2
DRIVING KEY 14 32 14 - 24 - 13 M5 2
DRIVING KEY 16 40 16 - 24 - 16 M6 2

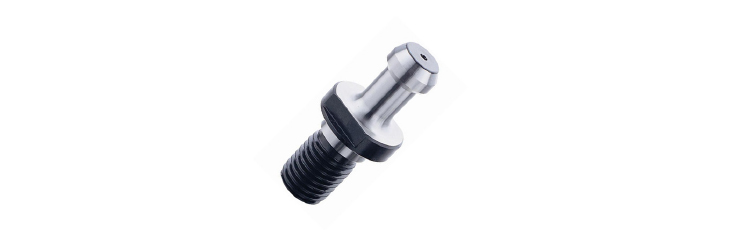

Accessories

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
