JIS 6339

SFC – Shrink Fit Holder

BT - Form AD - G6.3

Send enquiry

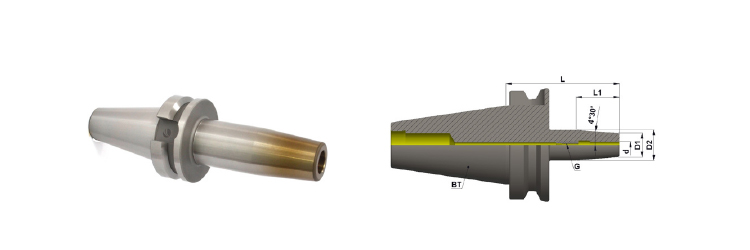

BT 40 - Standard GPL

Product Name Taper Form d. L D1 D2 L1 G Kgs Group
BT40 AD SFC 06 120 40 AD 6 120 21 27 36 M5 1.3 A
BT40 AD SFC 08 120 40 AD 8 120 21 27 36 M6 1.3 A
BT40 AD SFC 10 120 40 AD 10 120 24 32 42 M8X1 1.4 A
BT40 AD SFC 12 120 40 AD 12 120 24 32 47 M10X1 1.4 A
BT40 AD SFC 14 120 40 AD 14 120 27 34 47 M10X1 1.5 A
BT40 AD SFC 16 120 40 AD 16 120 27 34 50 M12X1 1.4 A
BT40 AD SFC 18 120 40 AD 18 120 33 42 50 M12X1 1.7 A
BT40 AD SFC 20 120 40 AD 20 120 33 42 52 M16X1 1.6 A
BT40 AD SFC 25 120 40 AD 25 100 44 53 58 M16X1 2.0 A

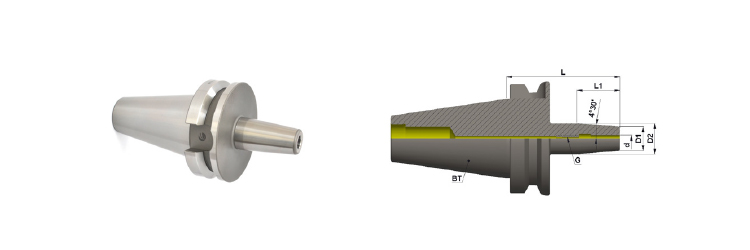

BT 50 - Standard GPL

Product Name Taper Form d. L D1 D2 L1 G Kgs Group
BT50 AD SFC 06 100 50 AD 6 100 21 27 36 M5 3.8 A
BT50 AD SFC 08 100 50 AD 8 100 21 27 36 M6 3.9 A
BT50 AD SFC 10 100 50 AD 10 100 24 32 42 M8X1 3.9 A
BT50 AD SFC 12 100 50 AD 12 100 24 32 47 M10X1 3.9 A
BT50 AD SFC 14 100 50 AD 14 100 27 34 47 M10X1 4 A
BT50 AD SFC 16 100 50 AD 16 100 27 34 50 M12X1 4 A
BT50 AD SFC 18 100 50 AD 18 100 33 42 50 M12X1 4.1 A
BT50 AD SFC 20 100 50 AD 20 100 33 42 52 M16X1 4.1 A
BT50 AD SFC 25 100 50 AD 25 100 44 53 58 M16X1 4.3 A
BT50 AD SFC 32 100 50 AD 32 100 44 53 58 M16X1 4.1 A

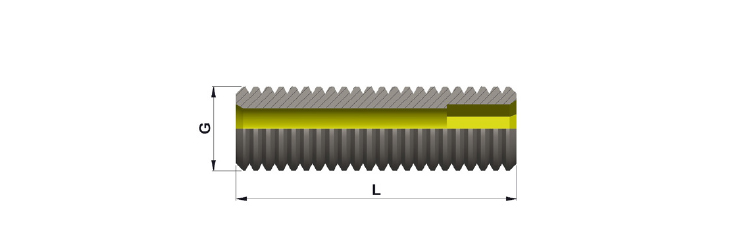

Spares

L G
20 M6
20 M8
20 M10
20 M12
20 M16

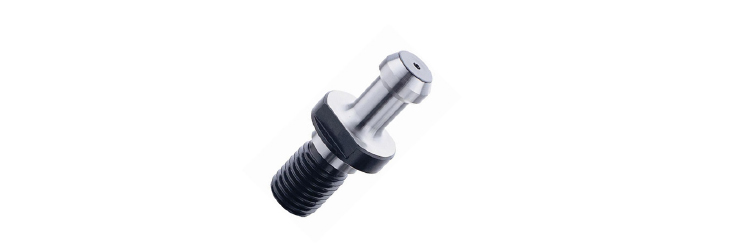

Accessories

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
