Drill Chuck Adaptor

BT – Form A

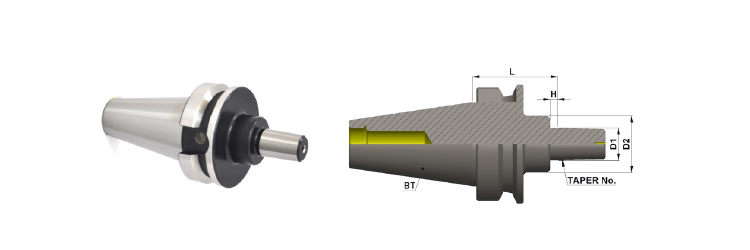

BT 40 - Standard GPL

Product Name	Taper	Form	Taper No.	L	Champing Range	D1	D2	H	Kgs	Group
BT40 A JTA 06 045	40	A	JTA6	45	0.8 - 13	30	17.17	3.2	1.1	A
BT40 A B16 045	40	A	B16	45	0.8 - 13	30	15.73	4	1.1	A

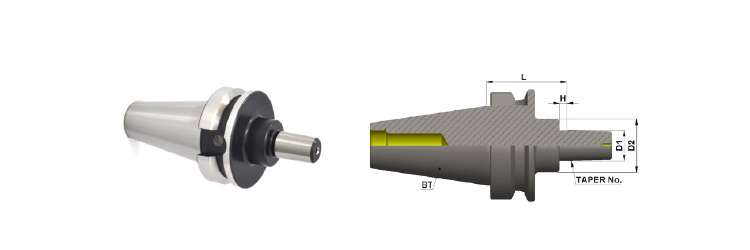

BT 50 – Standard GPL

Product Name	Taper	Form	Taper No.	L	Champing Range	D1	D2	H	Kgs	Group
BT50 A JTA 06 045	50	A	JTA6	45	0.8 - 13	30	17.17	3.2	3.7	A
BT50 A B16 045	50	A	B16	45	0.8 - 13	30	15.73	4	3.7	A

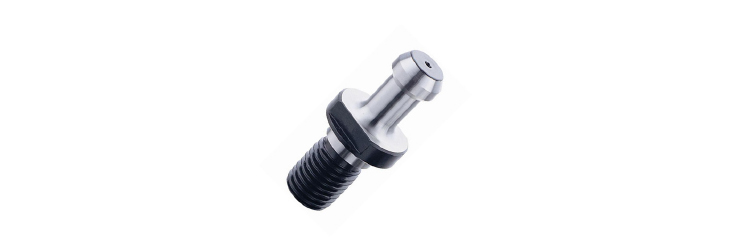

Accessories

Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
