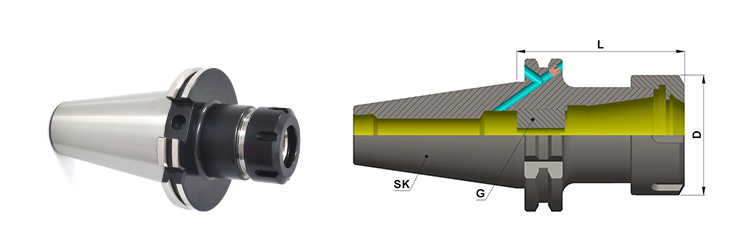

SK 40 – Standard GPL
| Product Name | Taper | Form | Size | L | Champing Range | G | D | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|
| SK40 ADB ER 16 063 | 40 | AD/B | ER16 | 63 | 1-10 | SCW7/16 | 28 | 0.9 | B |
| SK40 ADB ER 25 060 | 40 | AD/B | ER25 | 60 | 1-16 | M18X1.5 | 42 | 1 | B |
| SK40 ADB ER 32 070 | 40 | AD/B | ER32 | 70 | 2-20 | M22X1.5 | 50 | 1.1 | B |
| SK40 ADB ER 40 080 | 40 | AD/B | ER40 | 80 | 3-26 | M22X1.5 | 63 | 1.4 | B |

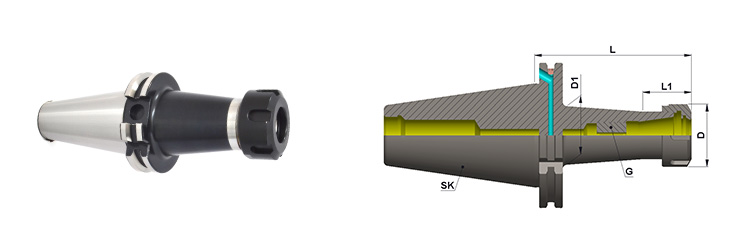

SK 40 – GPL = 100 mm
| Product Name | Taper | Form | Size | L | Champing Range | G | D | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|
| SK40 ADB ER 16 100 | 40 | AD/B | ER16 | 100 | 1-10 | SCW7/16 | 28 | 1.1 | B |
| SK40 ADB ER 25 100 | 40 | AD/B | ER25 | 100 | 1-16 | M18X1.5 | 42 | 1.3 | B |
| SK40 ADB ER 32 100 | 40 | AD/B | ER32 | 100 | 2-20 | M22X1.5 | 50 | 1.3 | B |
| SK40 ADB ER 40 100 | 40 | AD/B | ER40 | 100 | 3-26 | M28X1.5 | 63 | 1.6 | B |

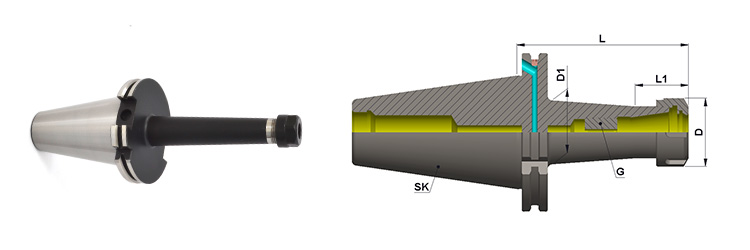

SK 40 – GPL = 160 mm
| Product Name | Taper | Form | Size | L | Champing Range | G | D | Kgs | Group | D1 | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SK40 ADB ER 16 160 | 40 | AD/B | ER16 | 160 | 1-10 | SCW7/16 | 28 | 1.5 | B | 22 | 34 |
| SK40 ADB ER 25 160 | 40 | AD/B | ER25 | 160 | 1-16 | M18X1.5 | 42 | 1.9 | B | 32 | 33 |
| SK40 ADB ER 32 160 | 40 | AD/B | ER32 | 160 | 2-20 | M22X1.5 | 50 | 1.9 | B | 40 | 33 |
