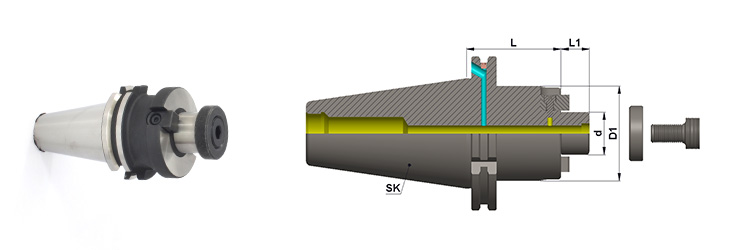

| Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|
| SK40 ADB SMS 16 060 | 40 | AD/B | 16 | 60 | 17 | 34 | 40 | 1.1 | B |
| SK40 ADB SMS 22 060 | 40 | AD/B | 22 | 60 | 19 | 48 | 50 & 63 | 1.4 | B |
| SK40 ADB SMS 27 045 | 40 | AD/B | 27 | 45 | 21 | 60 | 80 | 1.4 | B |
| SK40 ADB SMS 32 060 | 40 | AD/B | 32 | 60 | 24 | 70 | 100 | 2 | B |
| SK40 ADB SMS 40 060 | 40 | AD/B | 40 | 60 | 27 | 80 | 125 | 2.4 | B |
| Product Name | Taper | Form | d. | L | L1 | D1 | Cutter Dia | Kgs | Group |
|---|---|---|---|---|---|---|---|---|---|
| SK50 ADB SMS 22 060 | 50 | AD/B | 22 | 60 | 19 | 48 | 50 & 63 | 3.4 | B |
| SK50 ADB SMS 27 060 | 50 | AD/B | 27 | 60 | 21 | 60 | 80 | 3.6 | B |
| SK50 ADB SMS 32 060 | 50 | AD/B | 32 | 60 | 24 | 70 | 100 | 4 | B |
| SK50 ADB SMS 40 060 | 50 | AD/B | 40 | 60 | 27 | 80 | 125 | 5 | B |

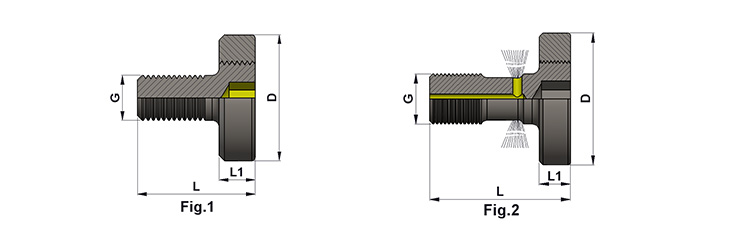

| D | L | L1 | G | d. | Allen Key | FIG | Remarks |
|---|---|---|---|---|---|---|---|
| 20 | 23 | 7 | M8 | - | 5mm | 1 | NORMAL |
| 28 | 26 | 8 | M10 | - | 6mm | 1 | NORMAL |
| 35 | 31 | 9 | M12 | - | 8mm | 1 | NORMAL |
| 42 | 36 | 10 | M16 | - | 10mm | 1 | NORMAL |
| 52 | 41 | 11 | M20 | - | 12mm | 1 | NORMAL |
| 75 | 60 | 15 | M30 | - | 17mm | 1 | NORMAL |
| 75 | 49 | 13 | M24 | - | 14mm | 1 | NORMAL |
| 20 | 32 | 7 | M8 | 2.5 | 5mm | 2 | THRU COOLANT |
| 28 | 33 | 8 | M10 | 3.2 | 6mm | 2 | THRU COOLANT |
| 35 | 44 | 9 | M12 | 3.2 | 8mm | 2 | THRU COOLANT |
| 42 | 45 | 10 | M16 | 3.2 | 10mm | 2 | THRU COOLANT |
| 52 | 51 | 11 | M20 | 3.2 | 12mm | 2 | THRU COOLANT |

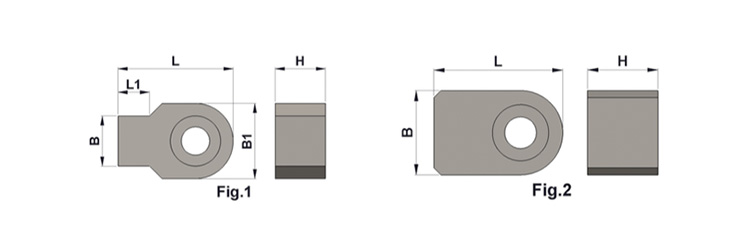

| Product name | B | b1 | L | L1 | H | Allen Screw | FIG |
|---|---|---|---|---|---|---|---|
| DRIVING KEY 08 16 | 8 | 12 | 17.5 | 5 | 8 | M4 | 1 |
| DRIVING KEY 10 22 | 10 | 12 | 18.3 | 7.5 | 10 | M4 | 1 |
| DRIVING KEY 12 27 | 12 | - | 18.3 | - | 10 | M4 | 2 |
| DRIVING KEY 14 32 | 14 | - | 24 | - | 13 | M5 | 2 |
| DRIVING KEY 16 40 | 16 | - | 24 | - | 16 | M6 | 2 |
Pre balanced G6.3@15000 RPM
Fine balancing G2.5@25000 RPM on request
